With the continuous development of smart projector technology, Auto Keystone Correction has become a standard feature in modern projectors. This technology automatically corrects trapezoidal image distortion caused by improper placement, ensuring that the projected image remains rectangular and significantly enhancing the viewing experience. Whether it's for a home theater, business presentations, or daily entertainment, Auto Keystone Correction ensures clearer, more symmetrical images, regardless of the projection angle. Today, we'll explore the working principle of Auto Keystone Correction, how it improves projector performance, and how it provides convenience in different scenarios.
What is Auto Keystone Correction Technology and Its Purpose?
In traditional projector usage, if the projector is not aligned directly with the screen or wall, the projected image typically appears distorted in the shape of a trapezoid. This occurs because when the projector is tilted upwards or downwards, the top or bottom of the image gets stretched or compressed, leading to asymmetry and negatively impacting the viewing experience.
For example, in a home theater setup, even a slight tilt in the projector can distort the image, affecting picture quality and causing visual discomfort. The traditional solution to this issue is manual adjustment of the projector's position or angle, but this can be tedious and time-consuming. With the introduction of Auto Keystone Correction technology, projectors can intelligently fix this trapezoidal distortion, making it easier to achieve more accurate projection.
The Working Principle of Auto Keystone Correction: How It Fixes Projector Images
Auto Keystone Correction relies on built-in sensors and smart algorithms to detect and correct image tilt in real time. The process works in the following steps:
1. Built-In Sensors in the Projector
The core of Auto Keystone Correction lies in the built-in sensors in the projector. These sensors detect whether the projected image is tilted. By measuring the angles of the four corners of the projected image, the sensors determine the degree and direction of the tilt. If the image is distorted, the sensors send this information to the projector’s processing unit.
2. Automatic Adjustment of the Image Angle
Once the distortion is detected, the projector automatically adjusts the angle. With the help of smart algorithms, the projector calculates a correction plan and adjusts the image to be a perfect rectangle. This process usually takes only a few seconds, with no need for manual intervention.
3. Image Optimization and Compensation
In addition to adjusting the image angle, Auto Keystone Correction also optimizes the image quality during the correction process. To ensure that the image remains clear, the projector will simultaneously adjust the colors and contrast to maintain the quality of the image after the correction.
Working Methods of Auto Keystone Correction: Vertical and Horizontal Correction
Auto Keystone Correction can be implemented in different ways, with the most common being vertical and horizontal correction:
Vertical Keystone Correction
Vertical Keystone Correction is the basic form of image correction and is used to fix tilting in the vertical direction. When the projector is placed below or above the screen, the image often tilts upwards or downwards, distorting the shape. Auto Vertical Correction automatically adjusts the top and bottom angles of the image to restore the projected image to a perfect rectangle.
Horizontal Keystone Correction
In addition to vertical correction, Auto Keystone Correction can also correct tilting in the horizontal direction. When the projector is placed at an angle to the screen, the projected image can often lean to the left or right, causing distortion. Horizontal correction adjusts the left and right angles of the image based on feedback from the sensors, restoring the image to its normal shape.
Angle Compensation
Some high-end projectors also feature angle compensation. This allows for adjustments not only in the vertical and horizontal directions but also according to the projector’s actual placement. Even if the projector is positioned at an irregular angle, the image will be automatically corrected to a standard rectangular shape.
Advantages of Auto Keystone Correction: Enhancing the Viewing Experience
Compared to traditional manual adjustment, Auto Keystone Correction has significant advantages, especially in terms of convenience, image quality, and adaptability:
1. Saves Time and Effort
The main advantage of Auto Keystone Correction is that it saves time and effort from manual adjustments. Users no longer need to repeatedly adjust the projector's position or angle, as the projector will automatically make these adjustments, ensuring the image is always in the optimal position.
2. Enhances the Viewing Experience
By intelligently correcting image distortion, the projector provides a clearer, more symmetrical image. Whether for home theater, gaming, or business presentations, precise image display significantly enhances the overall viewing experience. It eliminates the visual discomfort caused by distorted images and improves comfort.
3. Adapts to Different Environments
Whether used in a home theater, conference room, or while on the go, Auto Keystone Correction adapts to different projection environments. Even when the projector is placed in a less-than-ideal position, it can optimize the image through smart adjustment, ensuring that the environment doesn't negatively impact the image.
4. Portability and Ease of Use
For portable projectors, Auto Keystone Correction is especially important. Users only need to place the projector without worrying about angle adjustments, as Auto Keystone Correction will ensure the image is precise.
Magcubic Projectors: How Auto Keystone Correction Enhances Image Quality

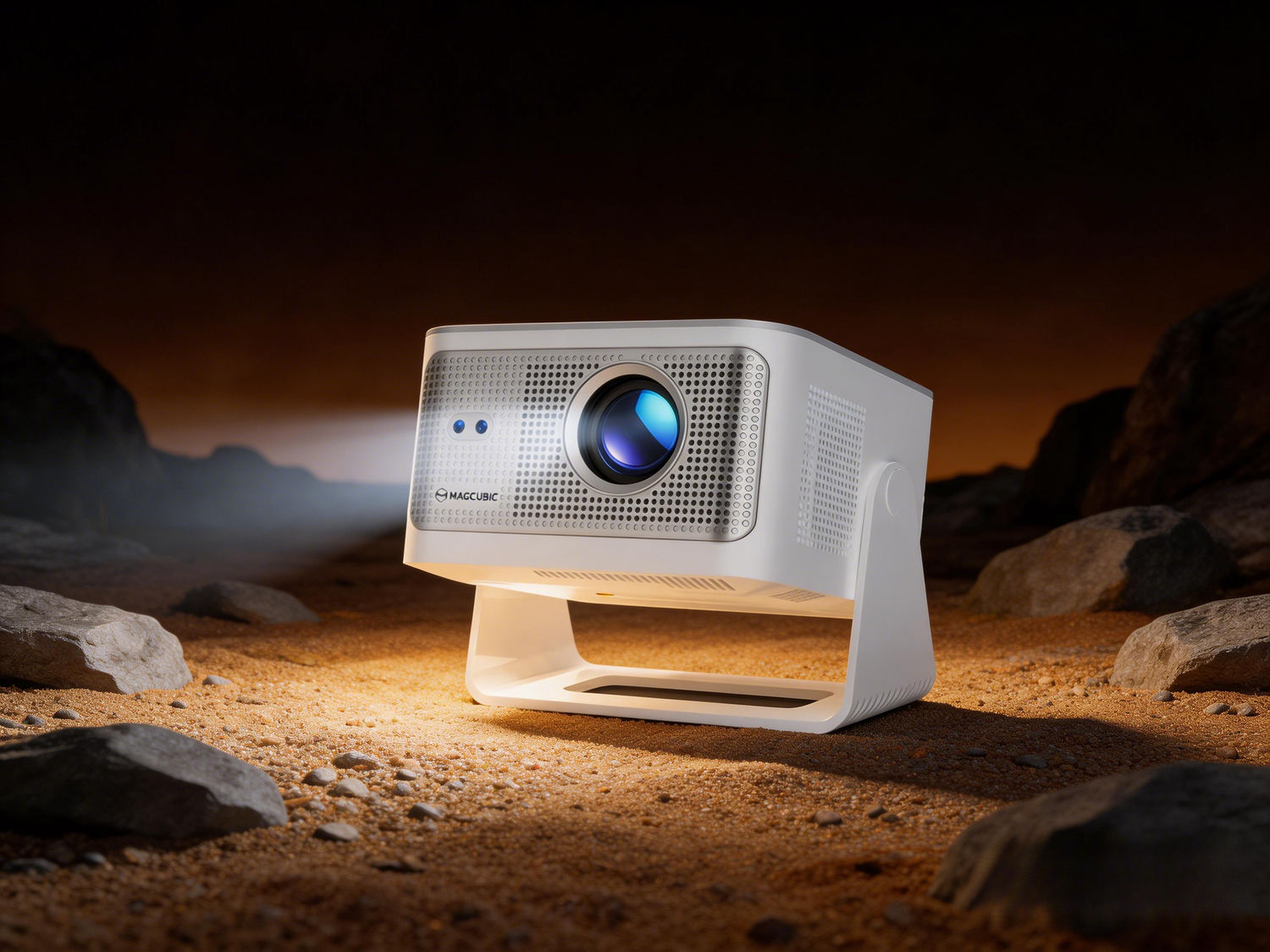

Magcubic projectors, such as the Magcubic HY350MAX, excel in their Auto Keystone Correction feature. Whether for home theater, office presentations, or portable use, the intelligent correction feature ensures the best image quality. It supports both vertical and horizontal correction and can optimize the image in real-time based on environmental factors, ensuring that every projection is perfect.
Conclusion: Auto Keystone Correction for a Perfect Viewing Experience
Auto Keystone Correction is a vital feature in modern projectors that, through intelligent sensors and algorithms, automatically corrects trapezoidal distortion caused by improper placement, ensuring users get the best projection. Whether in a home theater, business presentation, or daily entertainment, Auto Keystone Correction provides clearer, more symmetrical images.
With Magcubic projectors' advanced Auto Keystone Correction technology, users can easily enjoy high-quality viewing experiences in various environments. If you're looking for an easy-to-use, intelligent, and reliable projector, Magcubic is the best choice for you.
Choose a Magcubic projector and enjoy a more precise and comfortable viewing experience. Say goodbye to tedious manual adjustments and make every projection perfect.
